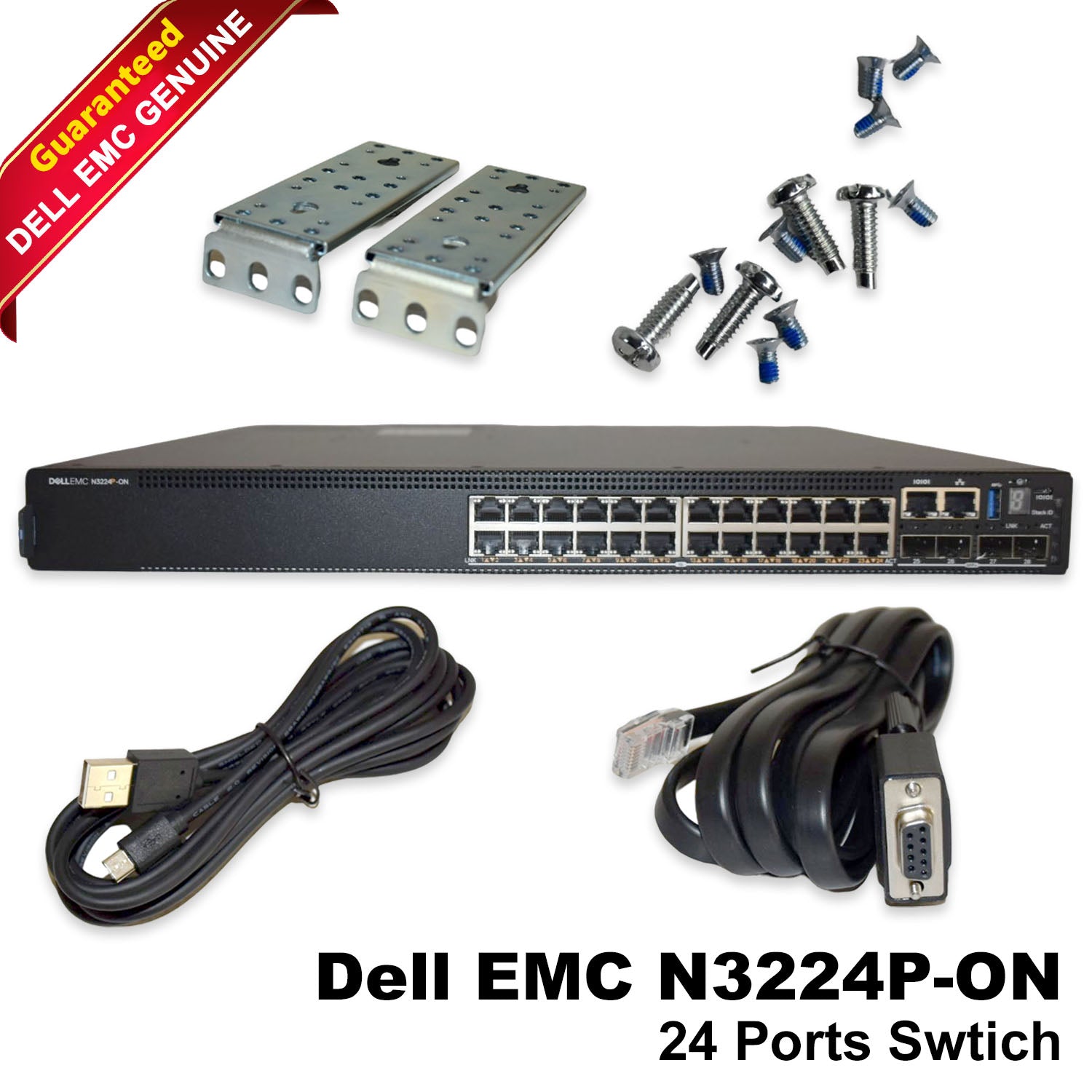

Dell EMC N3224P-ON 24x1G 4x10G 2x100G PoE 1050W 3L Network Ethernet Switch GM1R7
Brand: Dell
Part Number: GM1R7
MPN: GM1R7, 0GM1R7, CN-0GM1R7, N3224P-ON, E32W
Type: Ethernet Network Switch
Model: N3224P-ON
CPU memory: 4GB
Flash Memory: 8 Gb
Fans: 3
Form Factor: Rack-mountable
Performance:
Switching capacity: 528 Gbps
Forwarding rate: 733 Mpps
Interfaces:
24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
4 x 10Gbit LAN SFP+
1 x 10/100/1000 Base-T RJ-45 management
2 x 100Gbit LAN QSFP28 stacking
1 x USB Type A
1 x micro-USB 2.0 Type B console

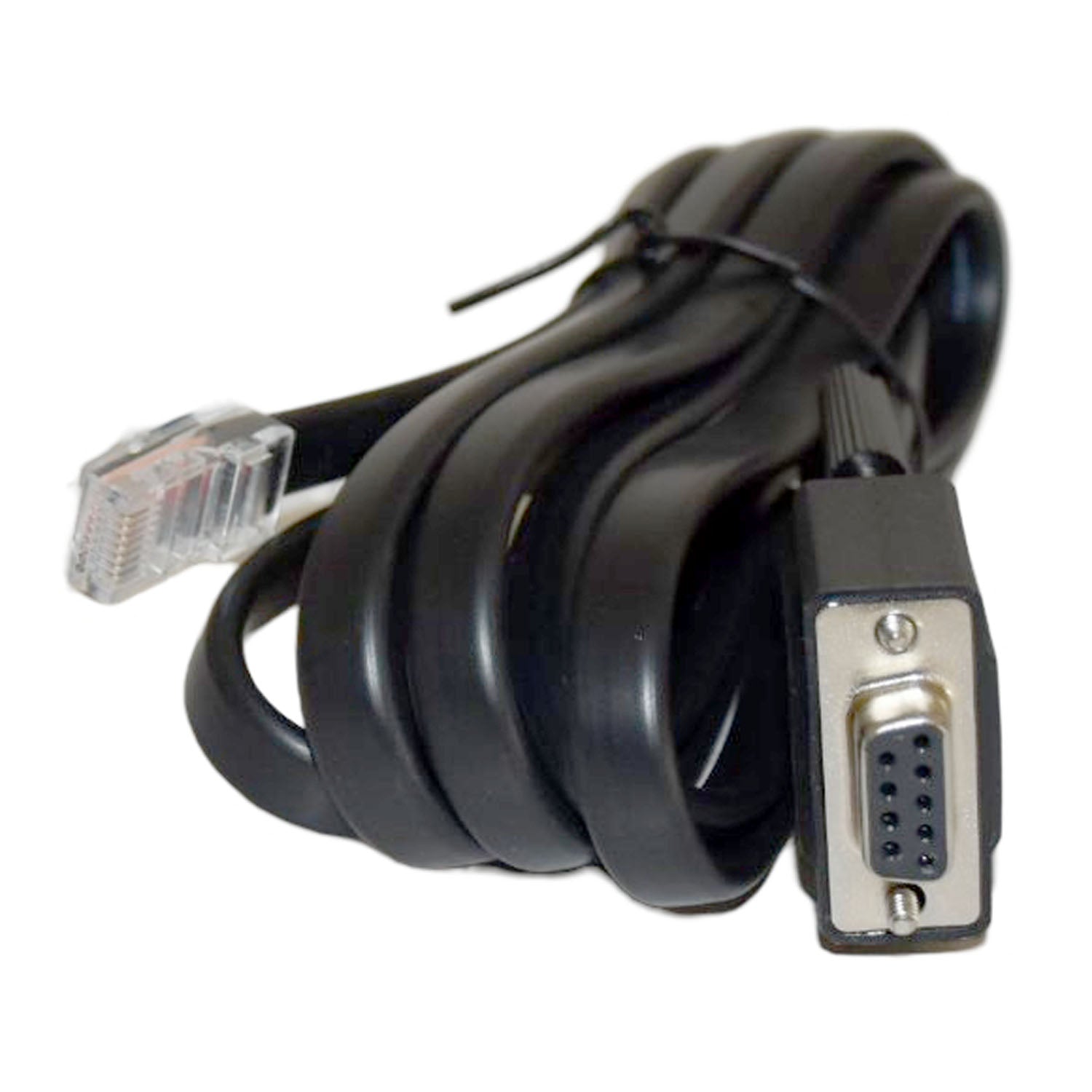

1 x serial (RS-232) RJ-45 console
Remote Management Protocol:
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, TFTP, SSH-2
Routing Protocol:
OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, IPv4-to-IPv6 Multicast
Power Over Ethernet (PoE): PoE++
Compliant Standards:
IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3ax
Features:
Flow control, MDI/MDI-X switch, auto-negotiation, ARP support, VLAN support, port mirroring, DiffServ support, WRR queuing, Broadcast Storm Control, IPv6 support, RSTP support, MSTP support, ACL support, QoS, STP Root Guard, IPv4 support, LLDP support, LACP, Energy Efficient Ethernet, MIB, GVRP, dual firmware images, NAC, NDP, tagged VLAN, redundant fans, Protocol-based VLANs support

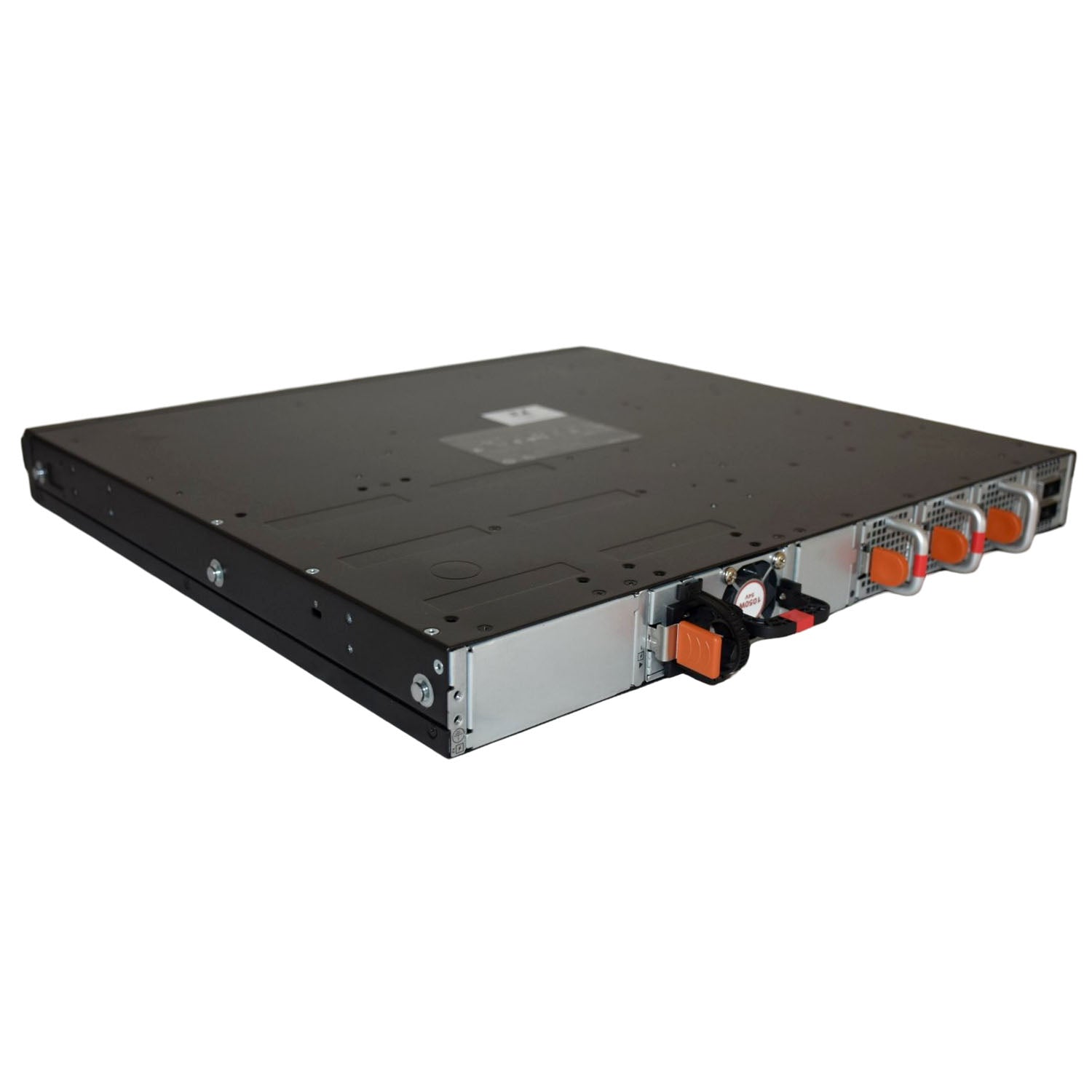

Power Supplies Installed: 1 x 1050W Hot Swap Power Supply Unit
Airflow Normal Airflow: IO to PSU
Management: Web or Console Management
Chassis Type: 1U Rack Mountable
Environmental Conditions:
Operating temperature: 32° to 113°F (0° to 45°C)
Storage temperature: –40° to 158°F (–40° to 70°C)
Operating relative humidity: 95%
Storage relative humidity: 95%
Power Supply Efficiency: 87% or better in all operating modes

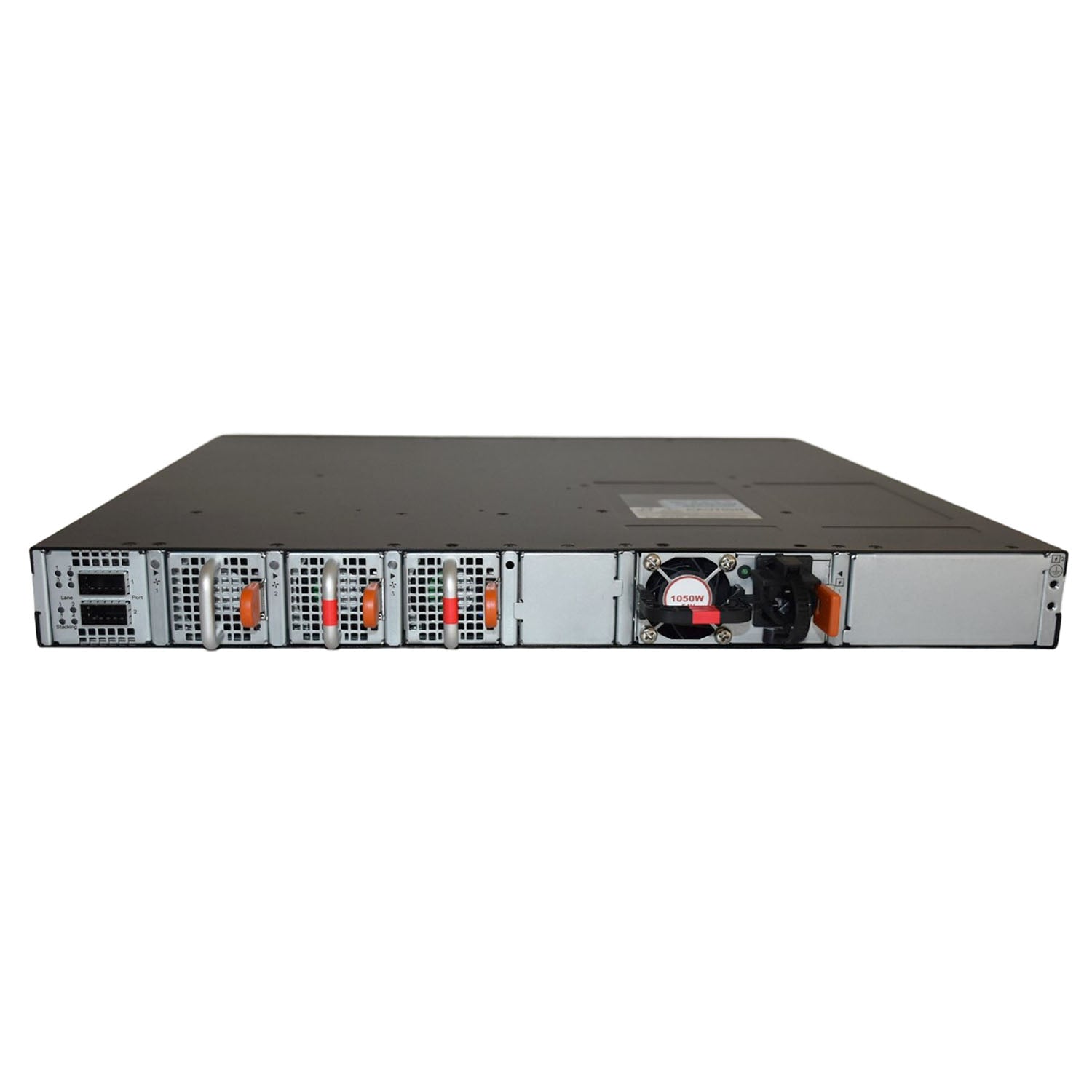

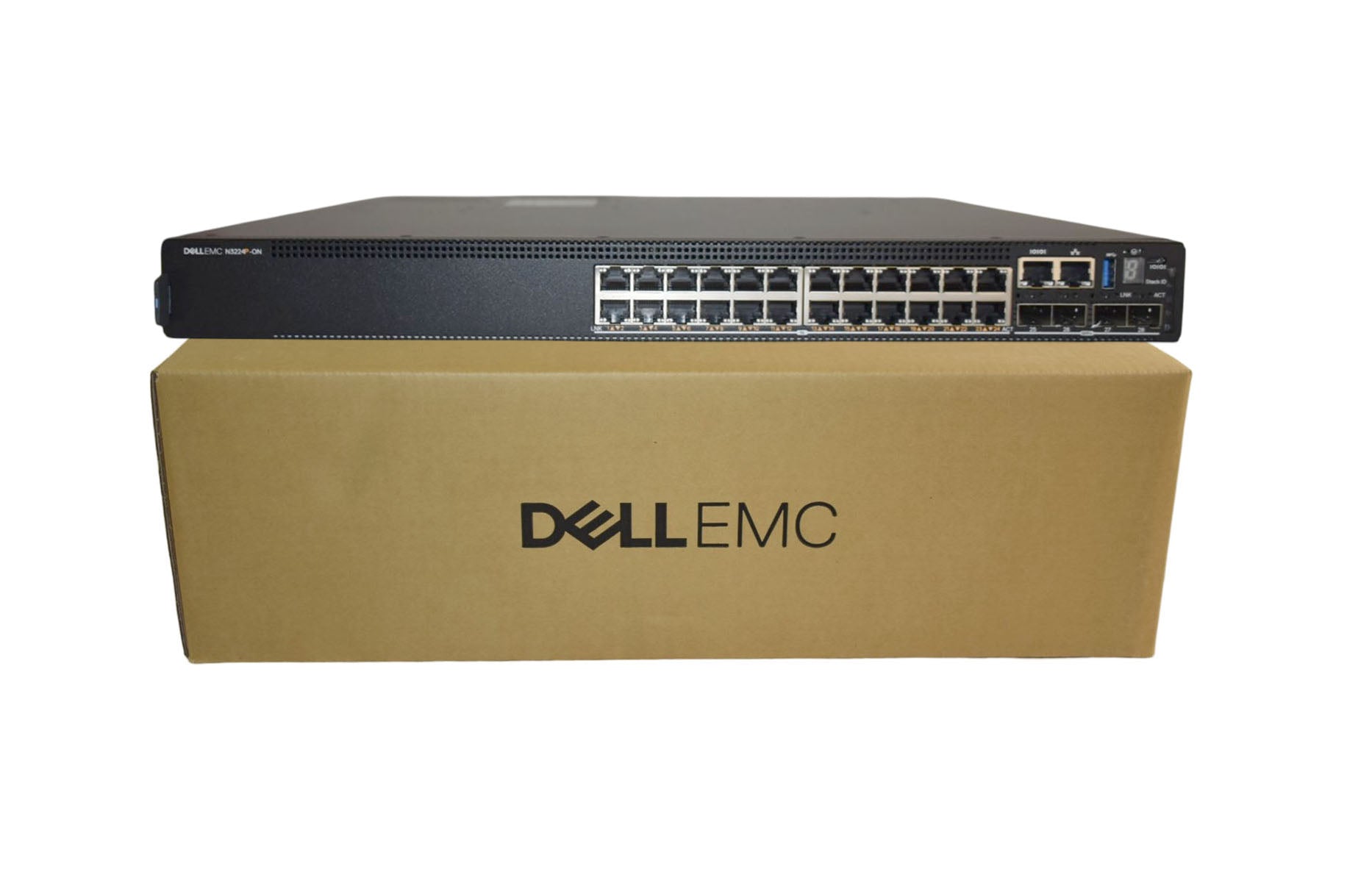

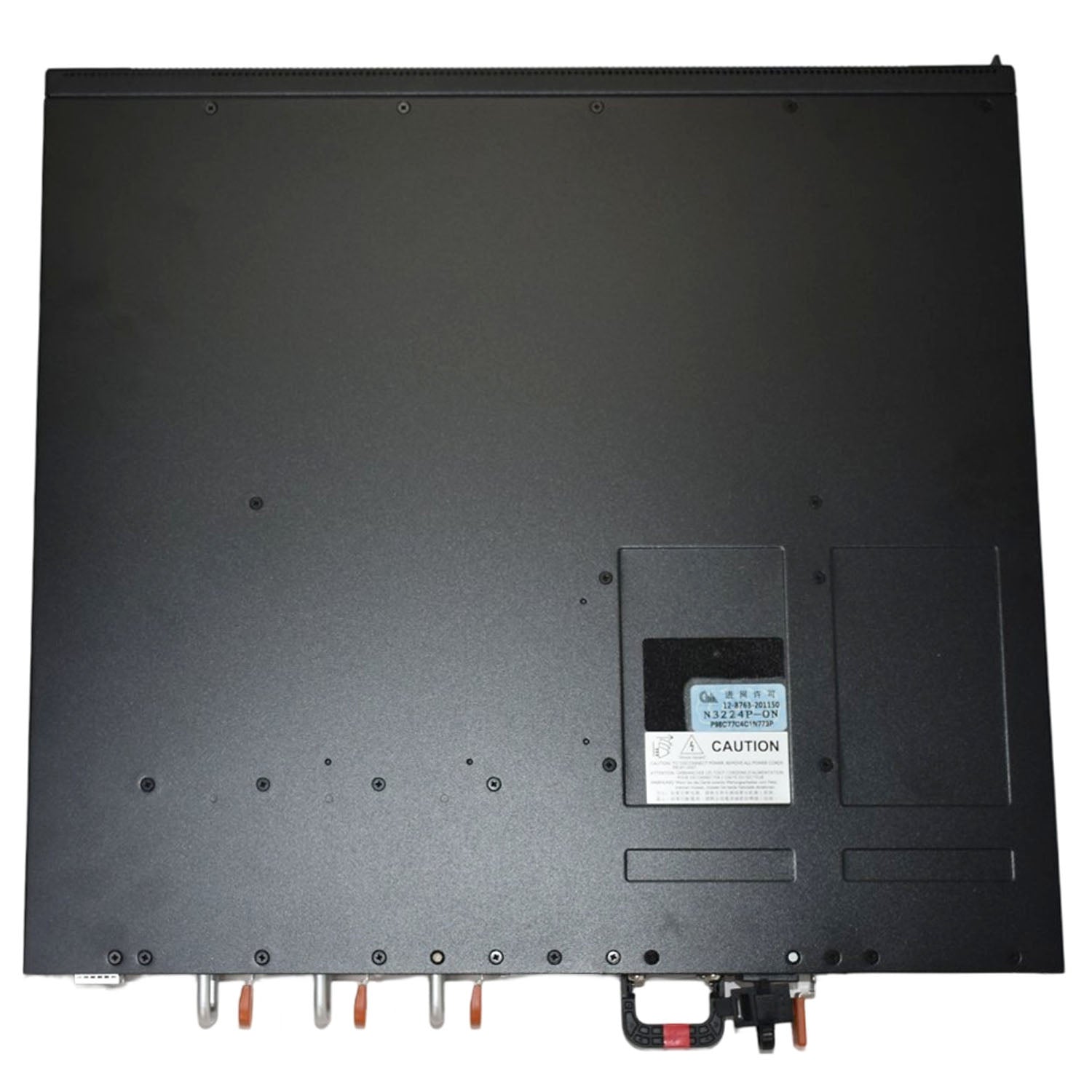

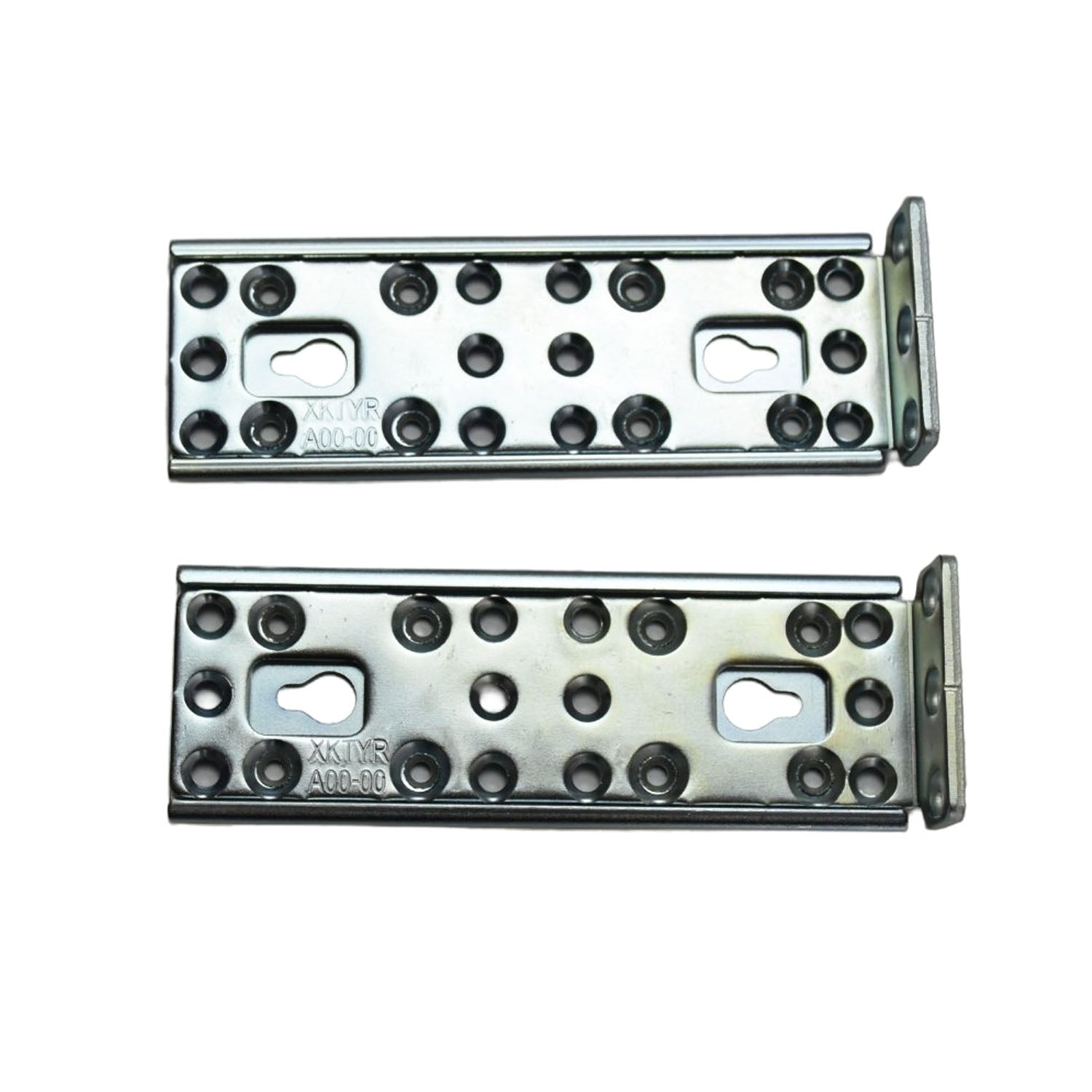

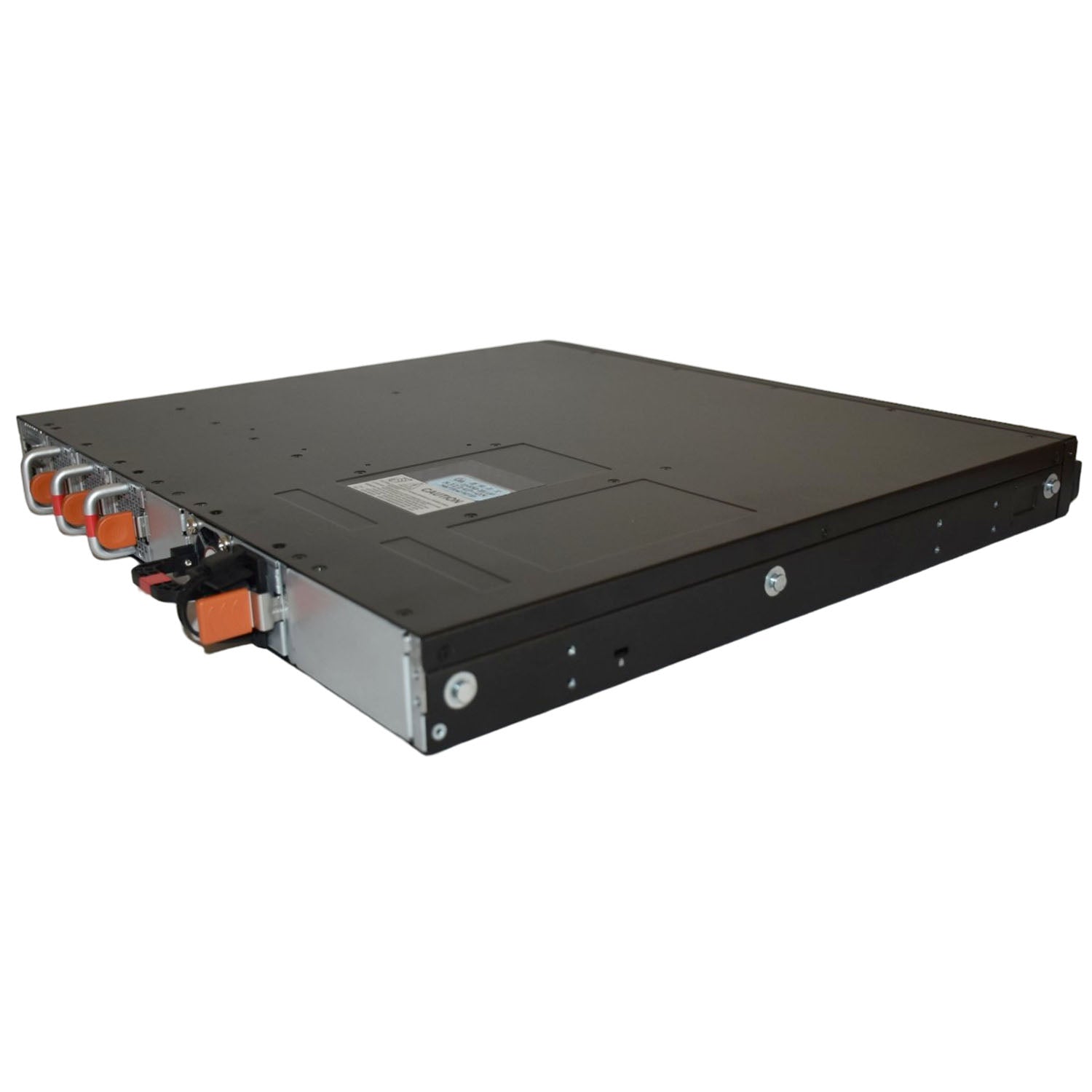

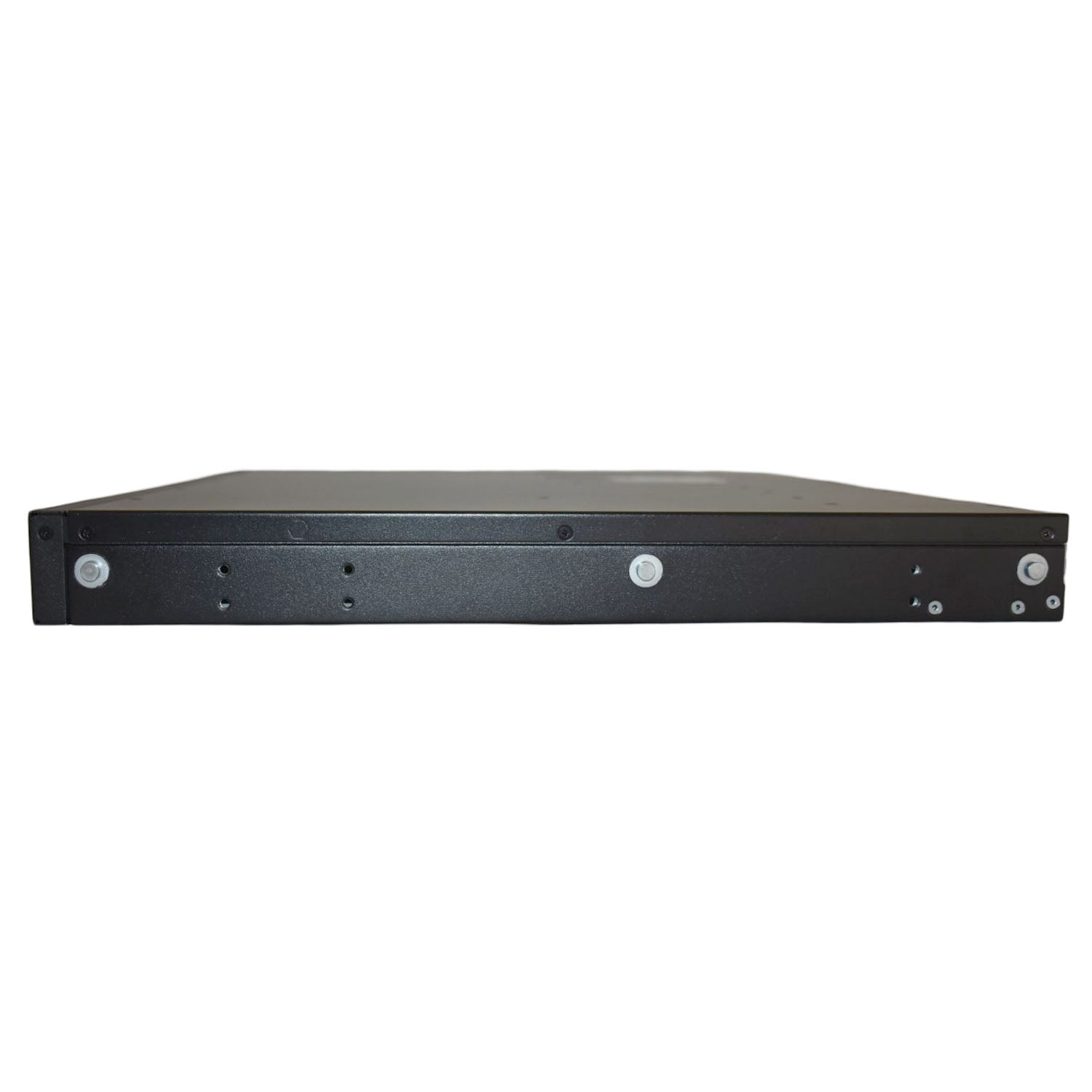

This item will be shipped exactly as shown in the picture.
